Shanghai Ileding Lighting Technology Corporation
2 Years
| Ask Lasest Price | |
| Brand Name : | Runlux |
| Model Number : | R4-2LHB90WD-xxK |
| Price : | $24.00/pieces 2-49 pieces |

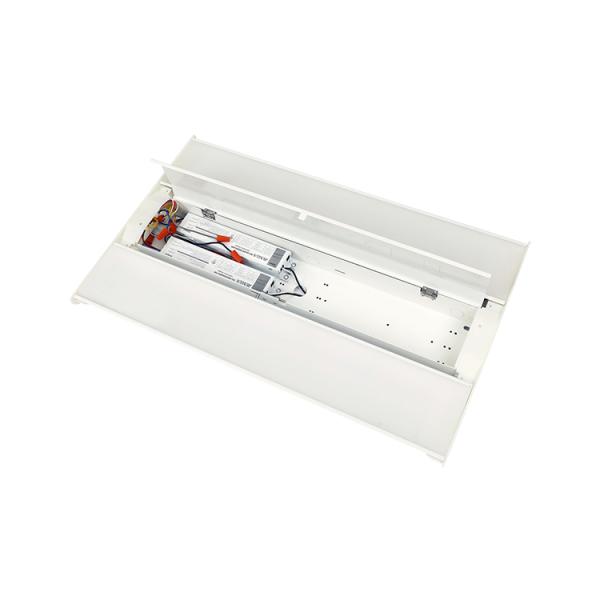

LED Linear High Bay
Product Description
ILEDING LED linear highbay Series offers leading-edge efficacy and
scalability for high ceiling application such as warehouses,
distribution centers, manufacturing facilities and big box
retailers.
Choose from cable, pendant and surface mounting options to create a
custom solution that meets any lighting requirement.
Features
• Operating temperature -25°C to 40°C
• Suitable for damp locations
• L70 lifetimes projected to be 100,000 hours
• 0-10V Dimming as standard
• 120-277V or 120-347V driver available
• 135lm/w Meet DLC V5.0/V5.1 Premium
• No Screw Design,Easy to Installation
• 12V built-in Sensor
• Anti Glare Lens Design
• 5 years limited warranty
Model Selection
| Rated Power | Model No. | Lumen | DLC stauts | Length | Comparable Light source |
| 90W | R4-2LHB90WD-xxK | 12150 | DLC V5.0/V5.1 premium | 2FT | 175W MH, 4-lamp T8, 2-lamp T5HO |
| 105W | R4-2LHB105WD-xxK | 14175 | 2FT | 250W MH, 6-lamp T8, 4-lamp T5HO | |
| 131W | R4-2LHB131WD-xxK | 17685 | 2FT | 250W MH, 6-lamp T8, 4-lamp T5HO | |
| 162W | R4-2LHB162WD-xxK | 21870 | 2FT | 250W MH, 6-lamp T8, 4-lamp T5HO | |
| 178W | R4-2LHB178WD-xxK | 24030 | 2FT | 250W MH, 6-lamp T8, 4-lamp T5HO | |
| 4FT | |||||
| 223W | R4-4LHB223WD-XXK | 30105 | DLC V5.0/V5.1 premium | 4FT | 400W MH, 6-lamp T5HO |
| 321W | R4-4LHB321WD-XXK | 43335 | 4FT | 1000W MH, 10-lamp T5HO | |
| 420W | R4-4LHB420WD-XXK | 56700 | 4FT | 1200W MH, 12-lamp T5HO | |
Specifications (Hot sales)
| Item | Specification | Model No. | |||
| R4-2LHB90WD-xxK | R4-2LHB162WD-xxK | R4-4LHB223WD-XXK | R4-4LHB420WD-XXK | ||
| General Performance | Power Consumption(W) | 90W | 162W | 223W | 420W |
| Lumens Delivered(lm) | 12150 | 21870 | 30105 | 56700 | |
| Efficacy(lm/w) | ≥135 | ||||
| CRI | ≥80 | ||||
| Color Temp(CCT) | 4000K, 5000K | ||||
| Electrical | Power factor | 0.99 | |||
| Input Voltage | 120-277AC or 120-347V | ||||
| Physical | Mounting | Chain Standard (other options: pendant and Surface Mount Kit) | |||
| Operating | -25℃ to 45℃ | ||||
| temperature | |||||
| Humidity | 10-85% RH, non-condensing | ||||
| Certification | Certification | ETL, FCC, LM79, DLC V5.0/V5.1 Premium | |||
| Material Usage | RoHS compliant, no mercury | ||||
| Environment | Indoor/Damp | ||||
| Warranty | 5 Years Limited Warranty | ||||
Dimensions
| Size | Item No. | Length | Width | Height |
| 2FT | R4-2LHB90WD-XXK | 25.44inch 646mm | 15.75inch 400.1mm | 2.76inch 70.1mm |
| R4-2LHB105WD-XXK | ||||
| R4-2LHB131WD-XXK | ||||
| R4-2LHB162WD-XXK | ||||
| R4-2LHB178WD-XXK | ||||
| 4FT | R4-4LHB223WD-XXK | 50.63inch 1286mm | 15.75inch 400.1mm | 2.76inch 400.1mm |
| R4-4LHB321WD-XXK | ||||
| R4-4LHB420WD-XXK |
Package and Shipping Information
| Rated Power | Model No. | Carton Size | Gross Weight(PC) | pcs/Pallet | 20GP(pcs) | 40GP(pcs) | 40HQ(pcs) |
| 90W | R4-2LHB90WD-XXK | L26.2’’*W16.54’’*H3.54’’ | 6.0kgs | 114 | 990 | 2200 | 2850 |
| 105W | R4-2LHB105WD-XXK | 66.6cm*42cm*9cm | |||||
| 131W | R4-2LHB131WD-XXK | ||||||
| 162W | R4-2LHB162WD-XXK | ||||||
| 178W | R4-2LHB178WD-XXK | ||||||
| 223W | R4-4LHB223WD-XXK | L51.4’’*W16.54’’*H3.54’’ | 9kgs | 54 | 510 | 1140 | 1320 |
| 321W | R4-4LHB321WD-XXK | 130.6cm*42cm*9cm | |||||
| 420W | R4-4LHB420WD-XXK |
Sensor Options
| Eexternal | Internal (recommended) | Mounting bracket and hardware: | |
| Extenal Sensor (Microwave) Input Voltage:120-277V or 120-347V | Build-inSensor (Microwave) Input Voltage:120-277V | Build-inSensor (Microwave) Input Voltage:12V | 2 hooks and 2 chains(1m=39.4ft length) |
|
|
